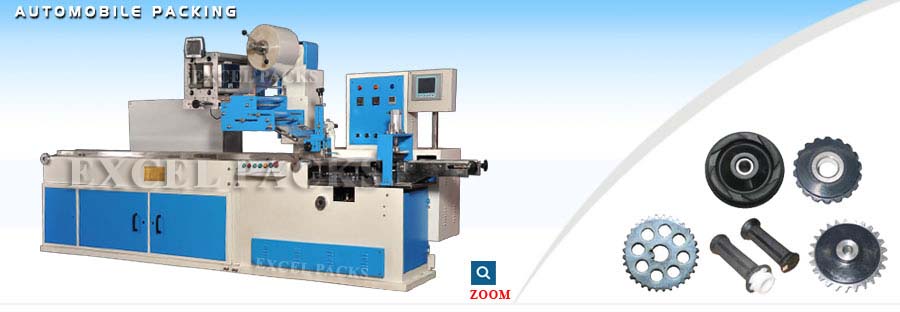

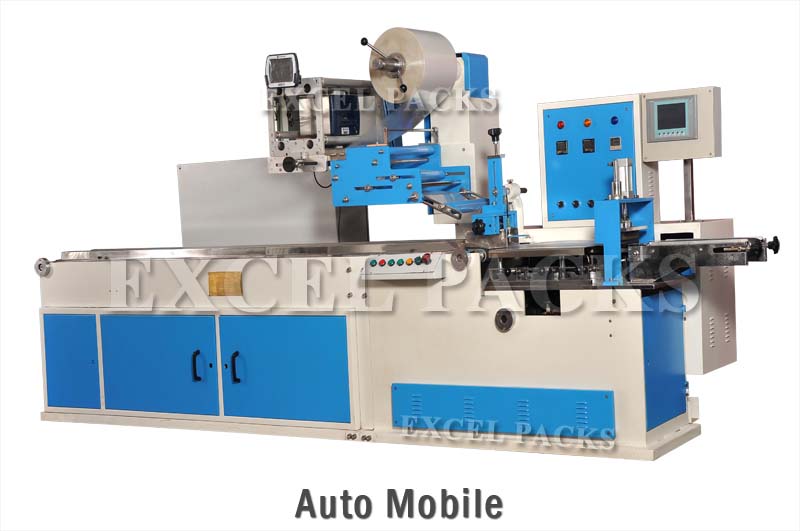

Automobile Packing Machine
Horizontal Flow Wrap Machine can pack a variety of solid products of different shapes and sizes with all types of heat sealable films and laminates.These machines are extensively used to pack Appalams, Rusks, Biscuits, Bun, Chocolate Bars, Stick Ice Cream Bars, Cakes, Groundnut Chikkies, Cotton & Bandage Roles, Scrub Pads, Noodles etc.in centre sealed made of heat sealable laminated polyester or B.O.P.P film. Manufacturers of Quality Cake Packing Machine.
|
|
![](PRODUCT/textbox_01.gif) |
![](PRODUCT/textbox_02.gif) |
![](PRODUCT/titilback1.jpg)
|
|
![](PRODUCT/textbox_04.gif) |
![](PRODUCT/titilback2.jpg)
|
|
![](PRODUCT/textbox_06.gif) |
|
|
Conveyor length 2meters
Packing Style : Centre Seal
Film thickness 40 microns and above
Speed 10 to 50 packets per minute, Depending upon the
product size paper thickness minimum 30 microns
Packing Material All Type of laminated (B.O.P.P, LD Poliester,
Aluminium Foil etc.,)
Packing Size Length : 30mm to 300mm, Width : 30mm to
150mm, Height : 10 mm to 150mm
PLC Control System
4 numbers of 150 watts pencil cutter heater
4 numbers of 350 watts round heater Total 1850 watts
Proximal control, photo cell unit
Dimension: length : 3700mm, width : 1200mm,
height : 1800mm Weight approx 800 to 1000kg |
Cantilever construction that provides for easy cleaning and maintenance, with easy access to mechanical and electrical components
Left to right operating direction
Pneumatic type end sealing jaws
In feed conveyor 2000mm long
Adjustable film folding box
The LCD Display and numeric keyboard, provides ease in setting machine parameters, it displays operational and error messages
The control allows data storage for up to 15 different machine set-ups |
|
