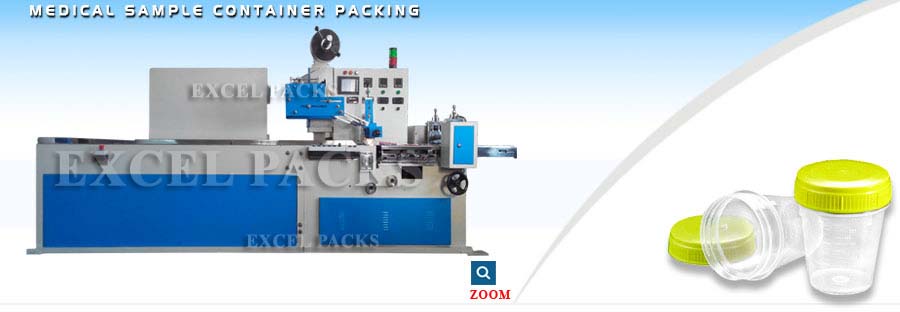

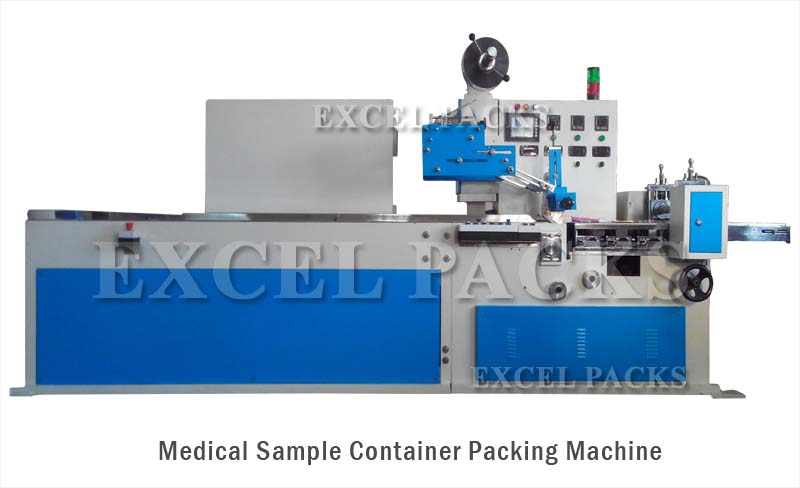

Medical Sample Container Packing Machine
Horizontal Flow Wrap Machine can pack a variety of solid products of different shapes and sizes with all types of heat sealable films and laminates. These machines are especially constructed for economical cost and operator friendly operations. These machines are extensively used to pack Appalams, Rusks, biscuits, Bun, Chocolate Bars, stick ice cream bars, cakes, groundnut chikkies, Cotton & Bandage Roles, scrub pads, noodles etc.in centre sealed made of heat sealable laminated polyester or B.O.P.P film. Drive of machine is electro-mechanical. Manufacturers of Quality Surgical Cotton Packing Machine. |
|
|
|
|
|
|
|
|
|
|
|
Feeding Style : Manual / Auto
Packing Style : Centre Seal
Film thickness 40 microns and above
Packing Size: Length: 30mm to 180mm, Width: 30mm to
120mm, Dia: 20mm to 50mm, Height: 10mm to 50mm
Packing Material: All Type of laminated,BOPP,LDP,Aluminum foil
Production Output: Approx 30 to 150 Packs / minute
Depending upon product Size
Control System: Photo Logic Control Sytem
Power: 5KVA
M/c Dimension: length: 3700mm, width:1200mm,
height:1800mm
Machine Weight: 1000Kg Approx |
Machine most suitable for packing Rectangular, Square and
Round Products
Eliminating mechanical arrangements and providing PLC
programming change over for different varieties and cut length
Operator friendly operating and feeding systems
Food grade PTFE lugs are provided at in feed chain
Machine and its spares are all in own manufacturing
in international standard
Reputed ISI marked Electrical goods and drives are provided |
|
|
|
|
|
|
