Conveyor length 2meters, with Auto Feeder
    (Defending Product)
Speed 30 to 450 packets per minute,
Packing Style : Centre Seal
Film thickness 40 microns and above
Packing Material All Type of laminated B.O.P.P,LD Poliester,
    Aluminium Foil etc.,
Packing Size Length : 30mm to 200mm, Width : 30mm to
    150mm, Heigh t: 10 mm to 70mm
Multi axis motion Control System with 10 MBPS
    Speed Power:7KVA
Dimension : length : 3700mm, width : 1200mm,
    height : 1800mm, Weight approx 800 to 1000kg

Cantilever construction that provides for easy cleaning and
maintenance, with easy access to mechanical and
   electrical components
Left to right operating direction
Rotary cross sealing jaws with an electronic overload
   safety switch
Self-centering film reel holder with a operated
   brake system
In feed conveyor 2000mm long
Adjustable film folding box
7.0” HMI 65K Color Display with numeric keyboard and 1MB
   Storage capability, provides ease in setting machine
   parameters, it displays operational and error messages
The control allows data storage for multi different
    machine set-ups
Individual heater controls are used for easily find the
   heater conditions
Automatic paper product correction and avoiding
   empty packets
Providing intelligence operating system for auto
   position accuracy

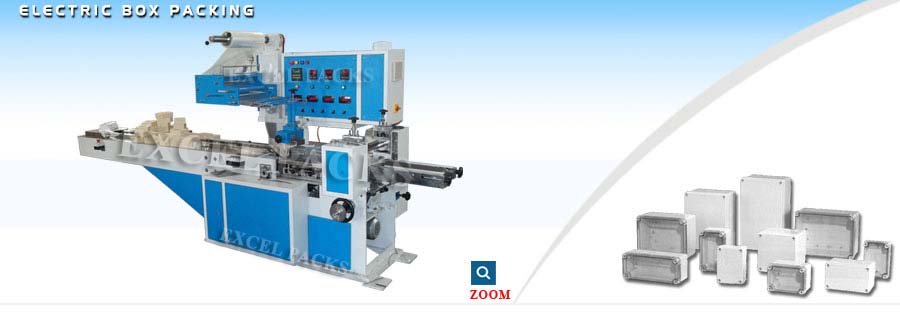

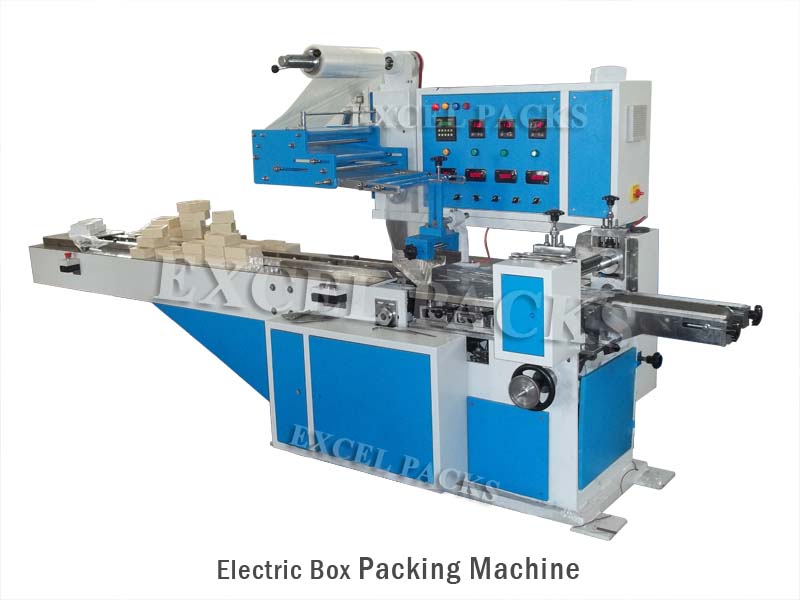

Electric Box Packing Machine
This Flow Packed Machine is used for medium - to high - production automatic non - shrinkwrapping applications. The Machine incorporates electronic motion control and an ergonomic design that makes cleaning and sanitizing easier. This model features the usual characteristics such as strength, ease of operation, and reliability. It is also possible to integrate many different automatic and semi-automatic feeders. Manufacturers of Quality Stopper Packing Machine.
